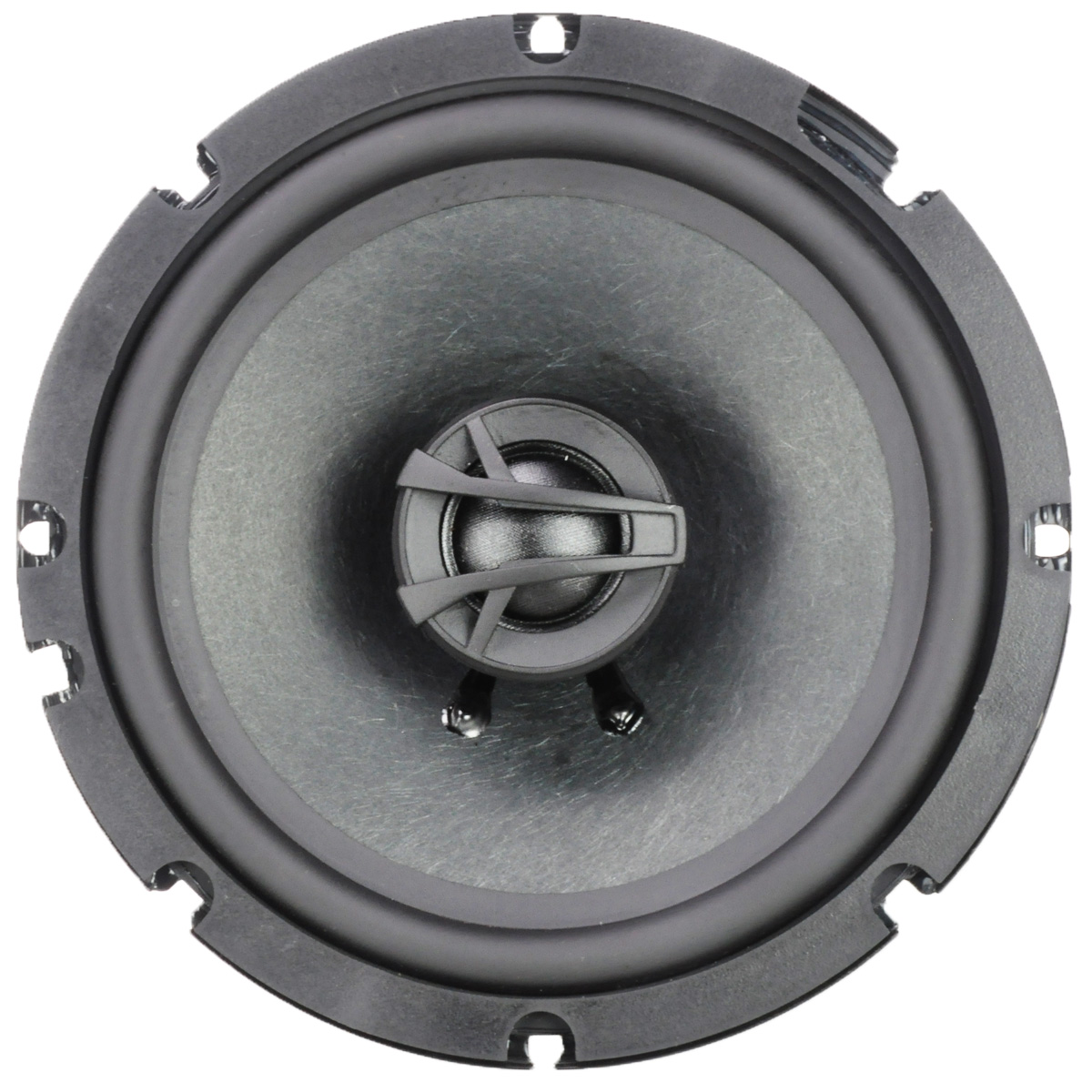

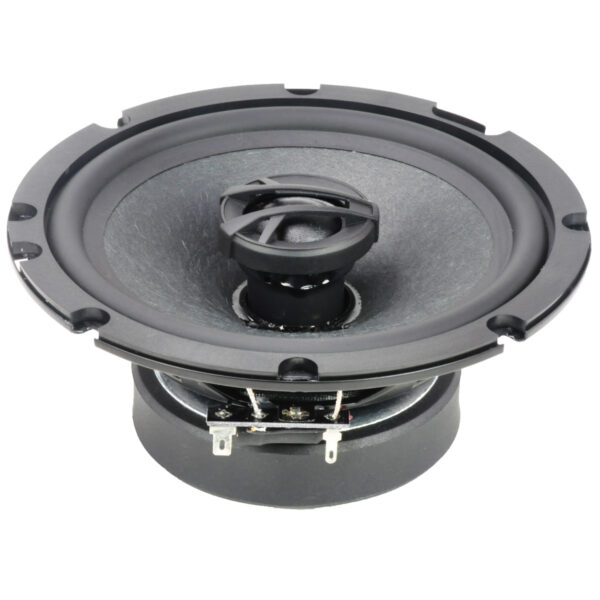

6.5-Inch Coaxial Speakers 80W | Audio Yong CME65G

Description

General Data				Unit
Type		Woofer	Tweeter
Overall Dimensions		165*72		mm
Nominal Power Handling		40		W
Transient Power 10ms		80		W
Sensitivity		90		dB
Frequency Response		60-20K		Hz
Cone Material		Paper	Silk
Net Weight		0.75		kg
Electrical Data
Nominal Impedance		4	4	Ohm
DC Resistance		3.2	3.4	Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter		25.9	20.4	mm
Voice Coil Height		9.5	1.5	mm
HE Magnetic Gap Height		4	1.5	mm
Max.Linear Excursion		2.75		mm
Voice Coil bobbin		KAPTON	KAPTON
Voice Coil Wire		Copper	CCAW
Number Of Layers		2	2	layers
Magnet System Type		High Flux Ferrite	Neodymium
BL Product		3.51		N.A
T-S Parameters
Suspension Compliance	Cms	0.55
Mechanical Q Factor	Qms	8.09
Electrical Q Factor	Qes	0.99
Total Q Factor	Qts	0.88
Moving Mass	Mms	8.29
Eq.Cas Air Load( liters)	VAS	15.28		Liter
Resonant Frequency	Fs	60		Hz
Effective Piston Area	SD	138.9		cm²

Superior Build Quality:

Woofer Construction:
- Cone Material: Durable paper cone for natural and responsive bass.
- Voice Coil: 25.9mm copper voice coil with a Kapton bobbin, ensuring heat resistance and long-lasting performance.
- Magnet: High flux ferrite magnet, delivering stable and powerful sound output.
Tweeter Construction:
- Dome Material: Silk dome tweeter, offering distortion-free and smooth high frequencies.
- Voice Coil: 20.4mm CCAW voice coil with a Kapton bobbin, ensuring lightweight and precise sound reproduction.
- Magnet: Neodymium magnet, providing lightweight yet efficient high-frequency sound.

Advanced Features:

Max Linear Excursion: Offers 2.75mm, ensuring distortion-free bass at higher power levels.
T-S Parameters:
- Qts of 0.88, VAS of 15.28L, and Fs of 60Hz, ensuring tight, punchy bass performance.
- Cms of 0.55 mm/N, providing smooth suspension compliance for enhanced sound clarity.
Impedance: Standard 4-ohm impedance, making it compatible with most car audio systems.

Applications:

The Audio Yong CME65G is ideal for:

Car Audio Upgrades: Replace factory-installed speakers with these high-quality coaxial speakers for improved sound clarity and bass.
Custom Audio Systems: Perfect for vehicles requiring powerful sound in a compact size.
