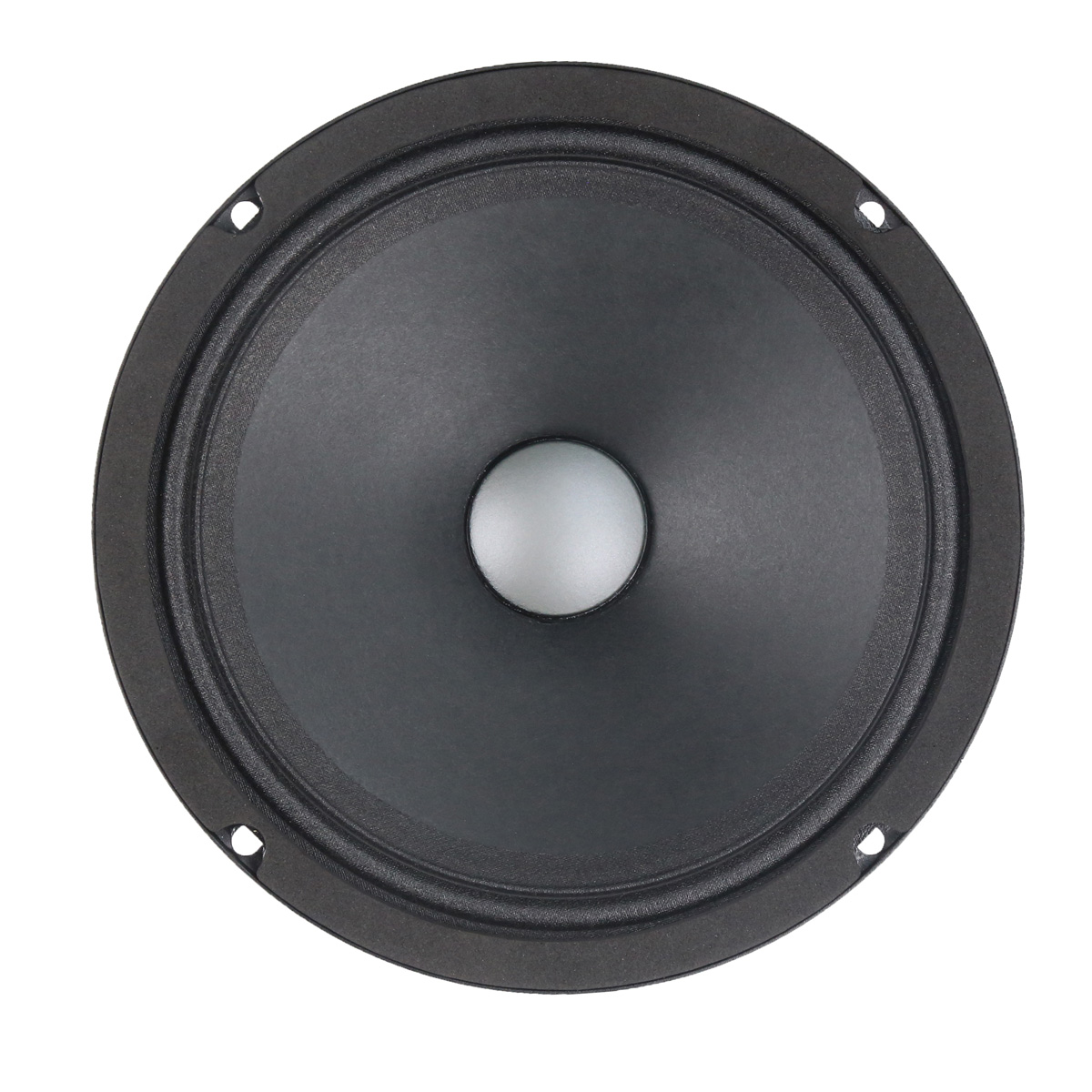

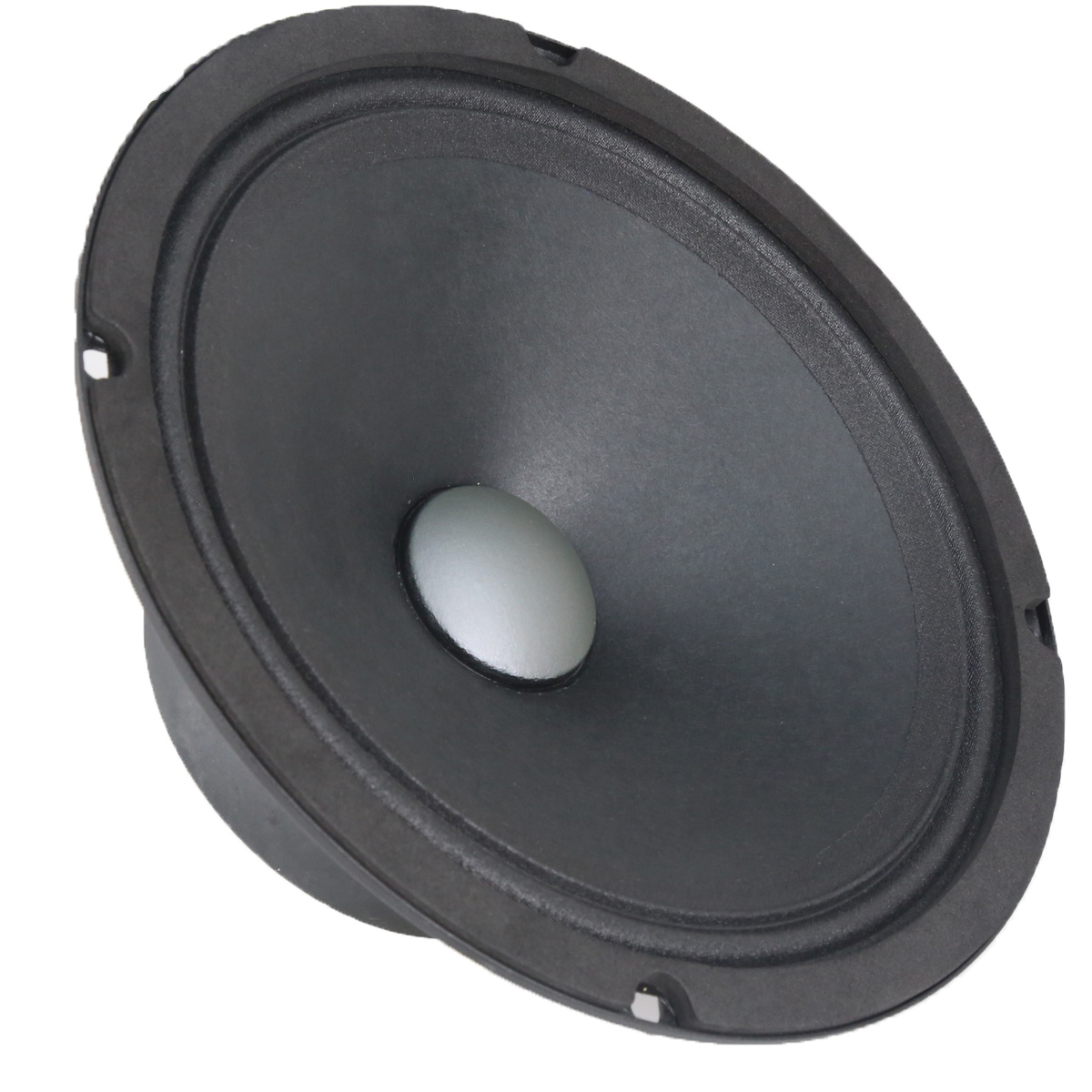

240W 8-Inch Midrange Speaker | MC8E2 Car Door Speaker

Description

Overall Dimensions	mm	210*83
RMS POWER	W	120
MAX POWER	W	240
Sensitivity	dB	92.3
Frequency Response	Hz	107-14K
Voice Coil Diameter	mm	30.5
Nominal Impedance	ohms	4
DC Resistance	ohms	3.2
Magnet（OZ）	Ferrite,22.9 OZ
Basket material	Stamped Steel Basket
Coil Material	CCAW
Former material	Kapton
Cone Material	Paper
Surround material	cloth
Voice coil winding height	mm	8.5
Gap height	mm	5
Xmax	mm	1.75
BL Product	N.A	5.03
Net weight	kg	1.5
Fs	Hz	107
Mms	g	14.6
Cms	mm/N	0.14
Qms		6.8
Qes		1.25
Qts		1.05
Vas	L	10.8
Sd	c㎡	226.9
No	%	1.05
All specifications subject to change without notice!

Product Description for MC8E2 Midrange Speaker (Available with 6″ 8″)

The MC8E2 8-Inch Midrange Speaker is engineered for precision audio reproduction, making it a reliable choice for car audio systems, professional loudspeaker setups, and OEM applications. With its 120W RMS power handling and a maximum power of 240W, this speaker delivers clear, dynamic sound across a wide frequency range of 107 Hz to 14 kHz, ensuring exceptional performance in both automotive and pro audio environments.

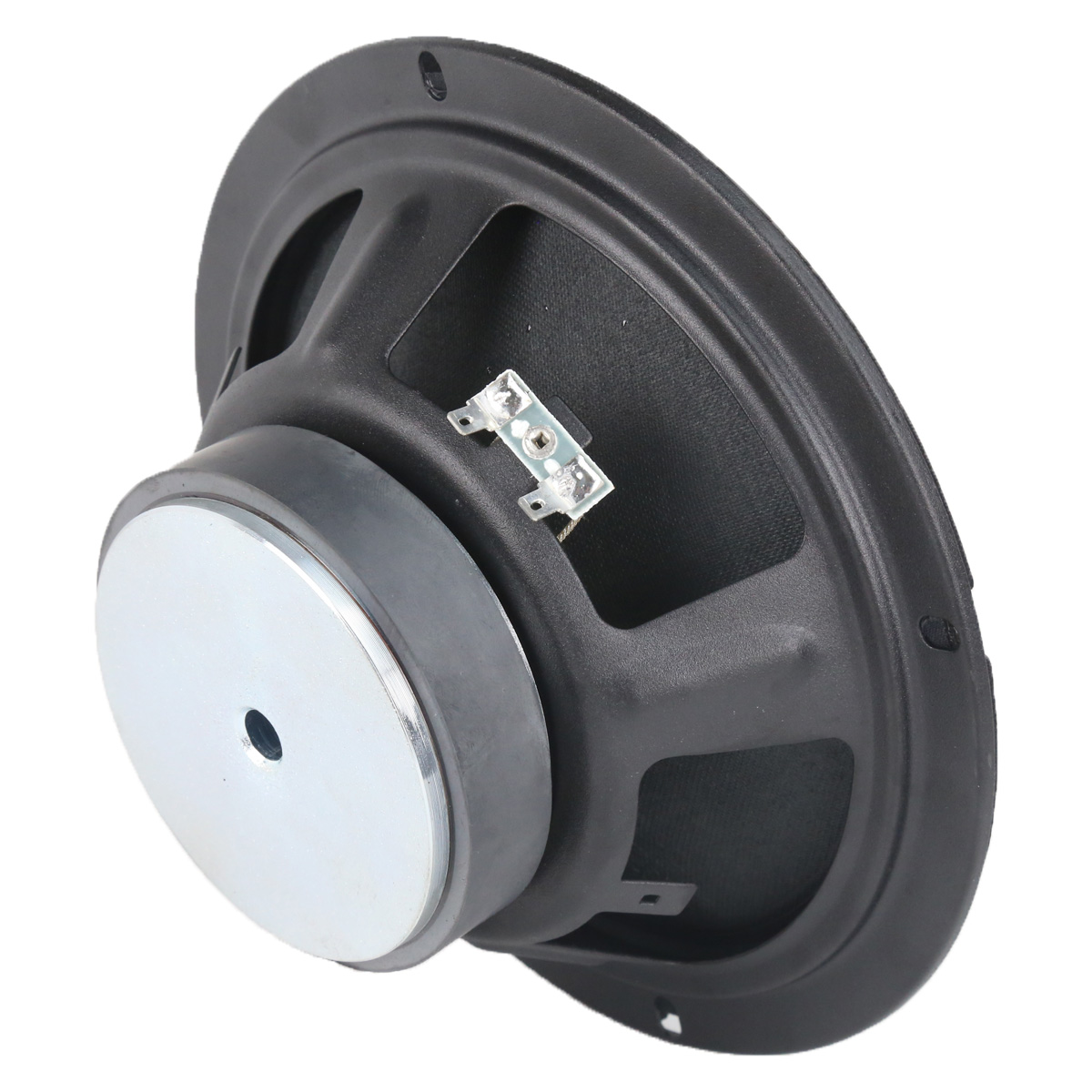

The 92.3 dB sensitivity and durable ferrite magnet (22.9 OZ) construction provide efficient sound output and durability. Its stamped steel basket ensures rigidity and longevity, while the CCAW voice coil with a Kapton former enhances thermal stability and power handling. The paper cone and cloth surround combine to deliver accurate sound reproduction and reliability.

With a lightweight design of just 1.5 kg, the MC8E2 is easy to integrate into custom car audio setups or professional speaker arrays. Its technical parameters, including a Qts of 1.05 and a Vas of 10.8 liters, ensure versatile application for midrange frequencies.

Superior Build Quality:

Voice Coil:
- 30.5mm CCAW Voice Coil: Offers excellent heat dissipation and reliability during extended use.
- Kapton Former: Heat-resistant Kapton bobbin enhances durability and performance consistency.
Magnet System:
- Ferrite Magnet (22.9 OZ): Provides stable and efficient sound output, ensuring premium audio clarity.
Durable Basket: The stamped steel basket ensures stability and long-lasting durability in demanding environments.

Advanced Features:

Max Linear Excursion (Xmax): Allows for 1.75mm, ensuring precise sound reproduction with minimal distortion at high volumes.
T-S Parameters:
- Qts of 1.05 and VAS of 10.8 liters, optimizing the speaker for balanced performance in compact enclosures.
- Fs of 107Hz for tight and impactful midrange sound.
Effective Piston Area: Covers 226.9 cm², ensuring impactful and well-defined mids.

Applications:

The MC8E2 D4/D8 is perfect for:

Car Door Speakers: Upgrade your vehicle’s sound system with powerful, clear midrange performance.
Custom Audio Systems: Ideal for audiophiles building high-performance audio setups.
Daily Use: A reliable replacement for factory-installed speakers to improve sound clarity.
