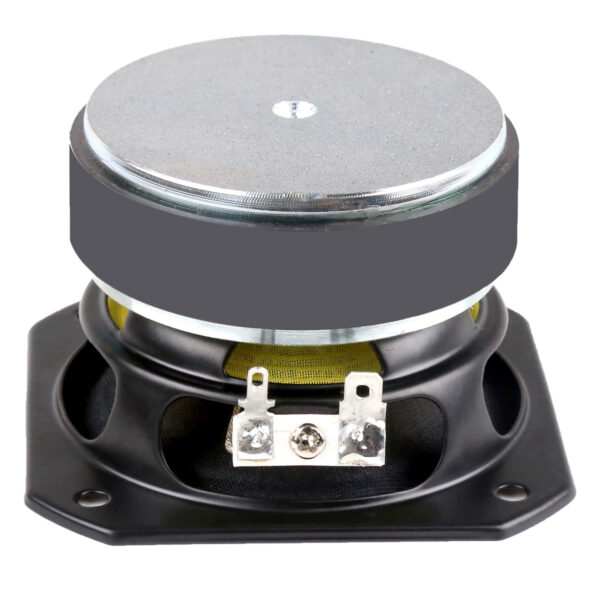

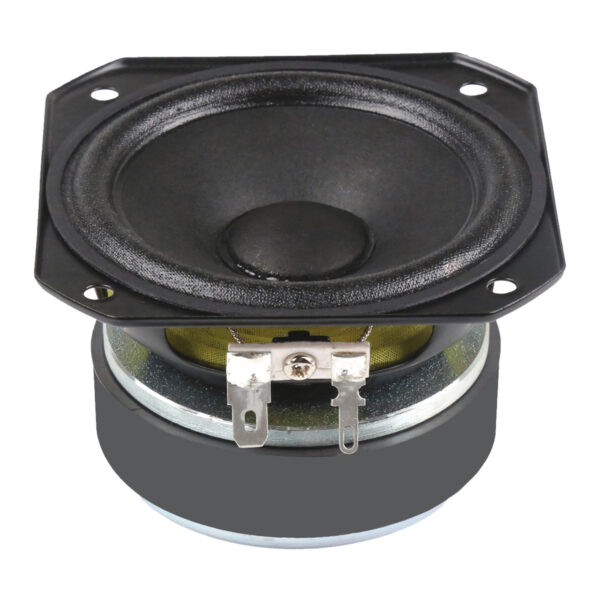

3-Inch Full-Range Speaker 40W | PF03F with 0.75" Voice Coil

Description

General Data			Unit
Overall Dimensions		78*50	mm
Nominal Power Handling		20	W
Transient Power 10ms		40	W
Sensitivity		87	dB
Frequency Response		146-18K	Hz
Cone Material		Paper
Net Weight		0.43	kg
Electrical Data
Nominal Impedance		4	Ohm
DC Resistance		3.2	Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter		19.4	mm
Voice Coil Height		8	mm
HE Magnetic Gap Height		4	mm
Max.Linear Excursion		2	mm
Voice Coil bobbin		Kapton
Voice Coil Wire		Copper
Number Of Layers		2	layers
Magnet System Type		High Flux Ferrite
BL Product		2.78	N.A
T-S Parameters
Suspension Compliance	Cms	0.59
Mechanical Q Factor	Qms	3.23
Electrical Q Factor	Qes	0.74
Total Q Factor	Qts	0.6
Moving Mass	Mms	1.98
Eq.Cas Air Load( liters)	VAS	0.77	Liter
Resonant Frequency	Fs	146	Hz
Effective Piston Area	SD	30.1	cm²

Applications:

Public Address Systems: Ensures clear speech projection in auditoriums, classrooms, and event spaces.
Portable Audio Systems: Ideal for compact PA setups and mobile audio solutions.
OEM Audio Integration: Tailored for manufacturers seeking premium audio components for their products.
Broadcast Monitoring: Reliable sound output for field and studio monitoring applications.

Technical Highlights:

Power Efficiency: Handles up to 20W nominal and 40W peak power for consistent audio delivery.
Wide Frequency Response: Covers 146 Hz to 18 kHz for balanced, full-range sound reproduction.
Compact and Lightweight: 78mm x 50mm dimensions with a weight of only 0.43 kg, making it ideal for portable systems.
High Sensitivity: Delivers 87 dB for efficient sound projection even in challenging environments.
Durable Build: Copper voice coil and Kapton bobbin ensure long-lasting performance.

Why Choose the PF03F 40W Max Power 0.75″ Voice Coil PA Audio Fullrange Speaker?

Precision Engineering: Designed for high-quality sound output with minimal distortion.
Versatility: Suitable for a wide range of professional audio applications.
Compact Design: Delivers powerful audio performance in a lightweight and portable form factor.
Cost-Effective Solution: A premium audio component that provides value without compromising quality.

B2B & Wholesale Purchase Information:

Minimum Order Quantities (MOQ): Flexible options for different business scales.
Custom OEM Services: Add your branding or modify specifications to fit your needs.
Discounted Pricing: Available for bulk orders.
Global Shipping: Reliable and fast logistics support for worldwide customers.

Key Applications:

Public announcements in schools, churches, and government buildings
Portable PA systems for event organizers and mobile professionals
OEM integration into audio products
Monitoring and communication systems
