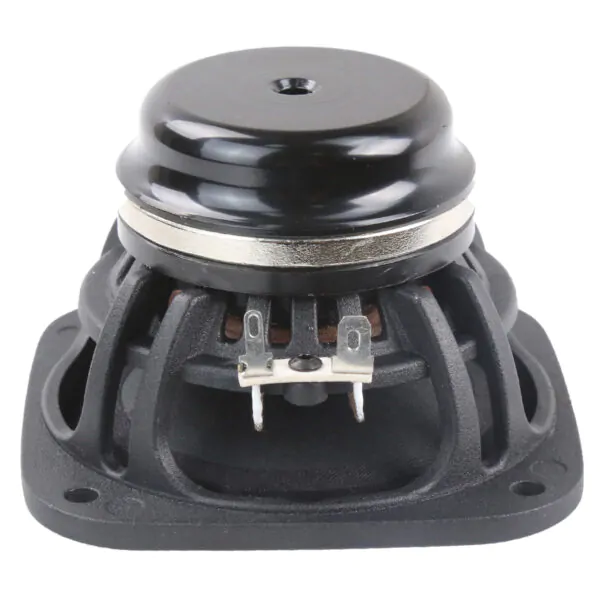

1-Inch Full-Range Speaker 100W

Description

General Data			Unit
Overall Dimensions			mm
Nominal Power Handling		50	W
Transient Power 10ms		100	W
Sensitivity		92.2	dB
Frequency Response		120-20K	Hz
Cone Material		PAPER
Net Weight			kg
Electrical Data
Nominal Impedance		4	Ohm
DC Resistance		3.4	Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter		25.9	mm
Voice Coil Height		10.5	mm
HE Magnetic Gap Height		5	mm
Max.Linear Excursion		2.75	mm
Voice Coil bobbin		Kappter
Voice Coil Wire		CCAW
Number Of Layers		2	layers
Magnet System Type		Neodymium
BL Product		4.3	N.A
T-S Parameters
Suspension Compliance	Cms	0.935
Mechanical Q Factor	Qms	4
Electrical Q Factor	Qes	0.29
Total Q Factor	Qts	0.27
Moving Mass	Mms	2.13
Eq.Cas Air Load( liters)	VAS	2	Liter
Resonant Frequency	Fs	120	Hz
Effective Piston Area	SD	44.1	cm²

Applications:

Professional PA Systems: Perfect for clear and precise sound delivery in conferences, events, and large venues.
Portable Audio Devices: Ideal for lightweight and compact systems requiring powerful full-range output.
Studio and Broadcast Monitors: Ensures accurate sound reproduction for professional use.
Custom OEM Speaker Designs: Great for high-performance audio products in various sectors.

Technical Highlights:

Power Handling: 50W RMS with a peak power of 100W.
High Sensitivity: Achieves 92.2 dB for superior sound output with minimal power input.
Wide Frequency Range: 120Hz – 20kHz ensures full-range audio clarity.
Neodymium Magnet System: Lightweight yet powerful, offering efficient performance.
Durable Components: Paper cone, CCAW voice coil wire, and Kapton bobbin for reliable use.
Compact Design: Small 3.5″ size and efficient construction for versatile installations.

Why Choose the PF35N 100W Max Power 3.5″ PA Audio Neodymium Fullrange Speaker?

Unmatched Sound Clarity: The combination of a neodymium magnet and high-sensitivity design ensures rich and clear sound output.
Compact and Lightweight: Designed for modern, portable systems without compromising audio quality.
Customizable Options: Suitable for OEMs looking for reliable and versatile audio components.
Versatile Applications: From professional PA systems to portable devices, the PF35N is built to perform.

B2B and Wholesale Purchase Information:

MOQ Options: Flexible minimum order quantities tailored for businesses of all sizes.
Customization Available: OEM logo printing and specification adjustments based on requirements.
Competitive Pricing: Wholesale rates for bulk orders with attractive discounts.
Global Shipping: Fast and secure worldwide delivery options.

Key Applications:

Professional-grade public address systems
Portable speaker systems
Studio and broadcast monitoring setups
Custom-designed audio systems
High-performance multimedia systems
