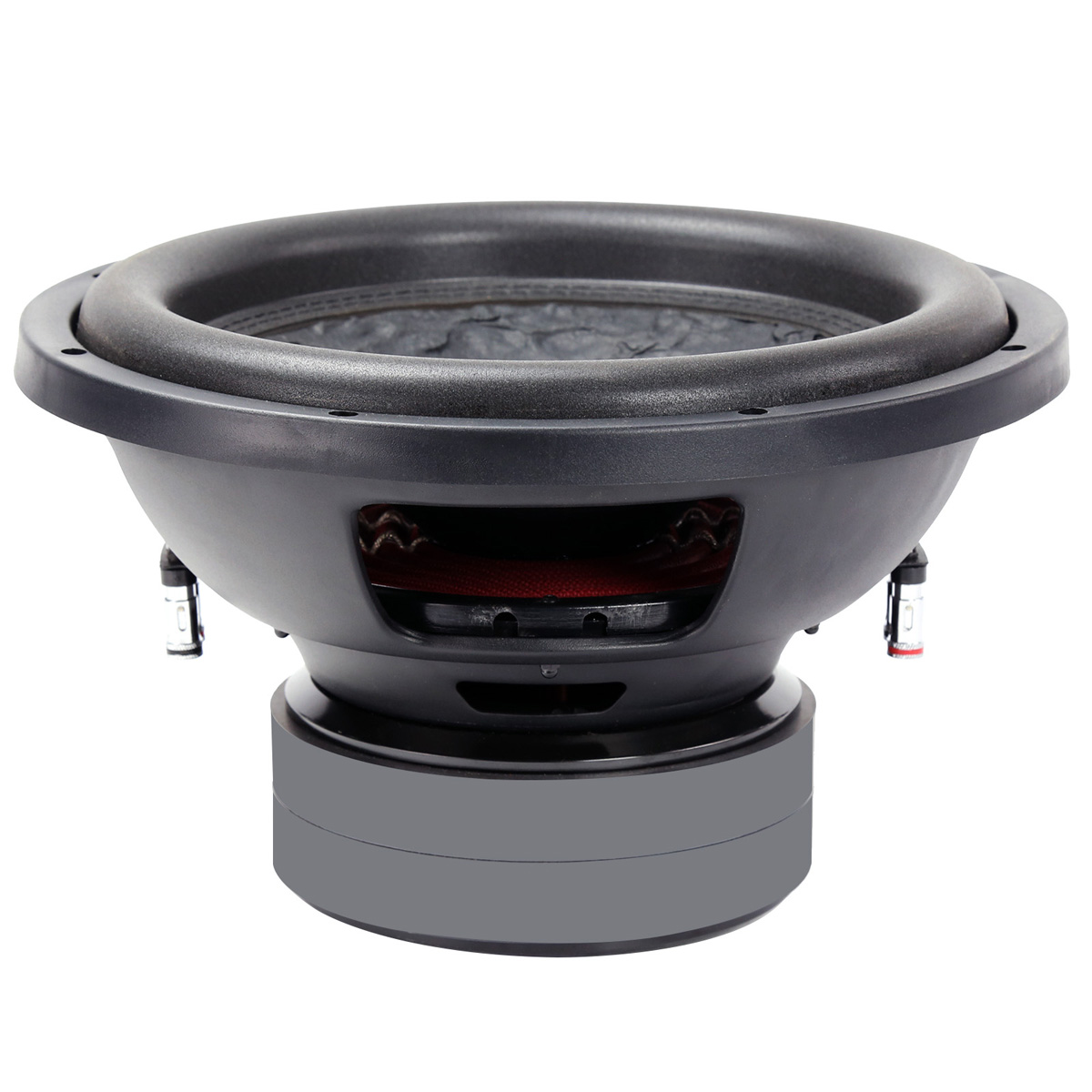

SE8V3 8" Subwoofer | 800W Dual 4Ω Voice Coils

Description

RMS POWER	W	400
MAX POWER	W	800
Sensitivity	dB	81.2
Frequency Response	Hz	47-300
Voice Coil Diameter	mm	61.1
Nominal Impedance	ohms	Dual 4
DC Resistance	ohms	Dual 3.2
Magnet（OZ）	Double stacked Ferrite, 98 OZ
Basket material	Stamped Steel Basket
Coil Material	Copper
Former material	Black Aluminum
Cone Material	Kraft pulp fiber non-pressed cone
Surround material	Foam
Voice coil winding height	mm	35
Gap height	mm	8
Xmax	mm	13.5
BL Product	N.A	9.7
Net weight	kg	6

SE8V3 D4 Subwoofer – Precision-Engineered for Superior Performance(Available 8″ 10″ 12″ 15″)

Introducing the SE8V3 D4, an 8-inch subwoofer designed to deliver powerful, precise bass for professional audio applications. With its robust construction and advanced features, this subwoofer is ideal for audio equipment manufacturers, car audio wholesale suppliers, and amplifier factories seeking premium solutions for their sound systems.

Key Features:

1. Power and Performance:

RMS Power Handling: 400W for continuous performance.
Peak Power Handling: 800W for dynamic and impactful bass.
Frequency Response: 47Hz – 300Hz for rich and accurate low frequencies.
Sensitivity: 81.2dB for efficient power usage.

2. High-Quality Components:

Voice Coil:
- Diameter: 61.1mm (2.4″).
- Material: Copper winding on a black aluminum former for heat resistance.
- Winding Height: 35mm for improved performance.
Magnet System: Double-stacked ferrite magnet (98 OZ) for powerful and consistent performance.
Cone Material: Kraft pulp fiber non-pressed cone for natural sound reproduction.
Surround Material: Foam for enhanced cone movement and durability.

3. Advanced Design:

Basket Material: Stamped steel basket for durability and stability.
Xmax: 13.5mm for extended cone excursion, delivering deeper bass.

4. Flexible Wiring Options:

Dual 4Ω Voice Coils: Allows multiple wiring configurations for amplifier compatibility.

5. Compact and Durable Build:

Dimensions: Compact 8″ size for versatile installation in tight spaces.
Weight: 6kg for robust and reliable performance.

T-S Parameters for Precision Tuning:

Resonant Frequency (Fs): 47 Hz
Mechanical Q Factor (Qms): 5.1
Electrical Q Factor (Qes): 0.7
Equivalent Air Volume (Vas): 5.5L
Effective Piston Area (Sd): 213.8 cm²

These parameters allow precise tuning for seamless integration into OEM audio systems, making it a trusted choice for car audio suppliers and automotive electronics manufacturers.

Applications:

Car Audio Systems:
Designed for car electronics suppliers and businesses focused on building reliable sound systems for vehicles.
Professional Sound Systems:
Ideal for amplifier factories and audio wholesale suppliers seeking top-tier components for premium sound performance.
Custom OEM Solutions:
Tailored for brands looking to establish or expand their presence in the audio industry.

Why Choose SE8V3 D4?

Trusted by audio equipment manufacturers and car sound wholesalers for its high-quality performance and reliable build.
Designed with advanced technologies to meet the highest industry standards, making it the perfect fit for both B2B distributors and custom OEM applications.

B2B Order Details:

MOQ:
- Subwoofers: 250 units
Custom Branding:
Available for clients with their own brand or looking to create one. Contact our sales team for tailored OEM solutions.

Let us help you deliver professional-grade sound systems to your customers. Contact us today to learn more or request a quote!

B2B Purchasing Process

Step 1: Contact Us

Reach out to us via our website, email, or phone to share your purchasing requirements, including product types, quantities, and any branding or customization needs.

We are a company specializing in wholesale business and do not accept retail orders. Our minimum order quantities are as follows:

Subwoofers: Minimum order quantity of 250 units
Car speakers: Minimum order quantity of 300 pairs
Car amplifiers: Minimum order quantity of 500 units

Pricing is determined based on the order quantity and will be quoted by our customer service team. Since our primary clients are businesses with their own brand or those looking to establish their brand, prices are not displayed directly on the website. Thank you for your understanding!

Step 2: Discussion and Confirmation

Our sales team will get in touch with you promptly to understand your specific needs and provide an initial quotation. If customization is required, we can offer professional advice, including product design and technical support.

Step 3: Order Confirmation

Once the order details are finalized, we will issue a formal contract and invoice, specifying all order details, including pricing, delivery time, and logistics arrangements.

Step 4: Payment and Production

After receiving the required deposit as per the contract, we will proceed with production. The production timeline depends on the order quantity and product type and will be clearly stated in the contract.

Step 5: Delivery and After-Sales Support

Once production is complete, we will ship the products using the logistics method specified by the client and provide necessary after-sales support.
