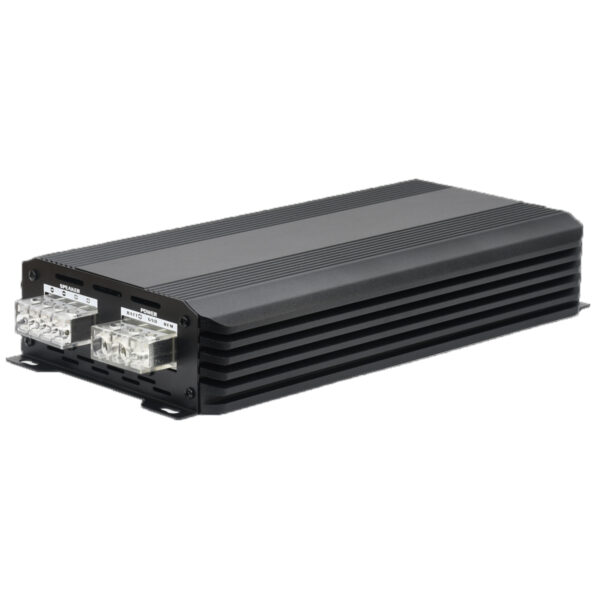

AD1200.1 | 1200W Monoblock Amplifier by Audio Yong

Description

Specification	AD1200.1 (Monoblock Amplifier)
Type	Monoblock Car Amplifier
Class	D
Bridgeable	No
Strappable	No
Fuse Rating	100 Amp
MOSFET Type	High Speed MOSFET Power Supply
Damping Factor	>150
Amplifier Width	6.20″
Bass EQ (Boost)	Yes (0, +6 dB, +12 dB)
Output Channels	1
RCA Line Output	No
Turn-On Circuit	Soft Turn-on Circuit
Working Voltage	8.5V – 16V
Amplifier Height	2.25″
Amplifier Length	12.87″
Subsonic Control	Off – 50Hz
Tri-Mode Capable	No
Frequency Response	20Hz – 250Hz
RMS Power at 1 Ohm	1200 Watts x 1 Channel (14.4v)
Peak Power at 1 Ohm	1600 Watts x 1 Channel (14.4v)
RMS Power at 2 Ohms	800 Watts x 1 Channel (14.4v)
RMS Power at 4 Ohms	500 Watts x 1 Channel (14.4v)
Efficiency at 4 Ohms	0.9
Protection Built-in?	Yes – 4-Way (Thermal, Voltage, Speaker, DC)
Power & Ground Inputs	4 Gauge
Signal-to-Noise Ratio	85 dB
Low Level Input (Gain)	6V – 0.2mV
Low Pass Filter (Variable)	50Hz – 220Hz
Power & Protection Indicators	Yes – LED Indicators
Remote Bass Knob & Cable Included	Yes

Applications

Powerful Vehicle Audio: Perfect for powering subwoofers in cars, trucks, and SUVs, ideal for daily drives or custom audio upgrades.
Competition-Ready Stages: Optimize bass for SPL competitions with robust 1,200W RMS capability.
Fleet Audio Enhancements: Upgrade commercial vehicles with a durable Class D amplifier built for demanding environments.

Key Features

Exceptional Power Output: Rated at 1,200W RMS at 1-ohm, this monoblock amplifier can surpass 1,600W at max power, perfect for a single 1,200W RMS subwoofer or a pair at 600W RMS each.
Class D Efficiency: Features a high-speed MOSFET power supply and advanced PCB board layout for maximum efficiency and minimal heat generation.
Customizable Sound Tuning: Includes a user-friendly control panel with a bass EQ switch (0, +6, +12dB), variable gain, low-pass filter, and subsonic filter for precise audio adjustments.
Robust Construction: Equipped with oversized 4-gauge power and ground terminals for optimal current flow, plus 4-way protection (thermal, short circuit, over-voltage, low-voltage) for long-lasting performance.

Why Choose Audio Yong’s AD1200.1 Amplifier?

Unmatched Reliability: Built with premium components and 1-ohm stability, this Class D amplifier ensures consistent power delivery for any setup.
User-Friendly Control: Comes with a remote bass knob, allowing drivers to fine-tune bass levels from the front seat for an immersive experience.
Bulk-Ready for B2B: Available with a minimum order quantity (contact us for details), ideal for large-scale car audio projects with Audio Yong.

Elevate your B2B portfolio with the AD1200.1 monoblock amplifier by Audio Yong—where power meets precision for every journey!
