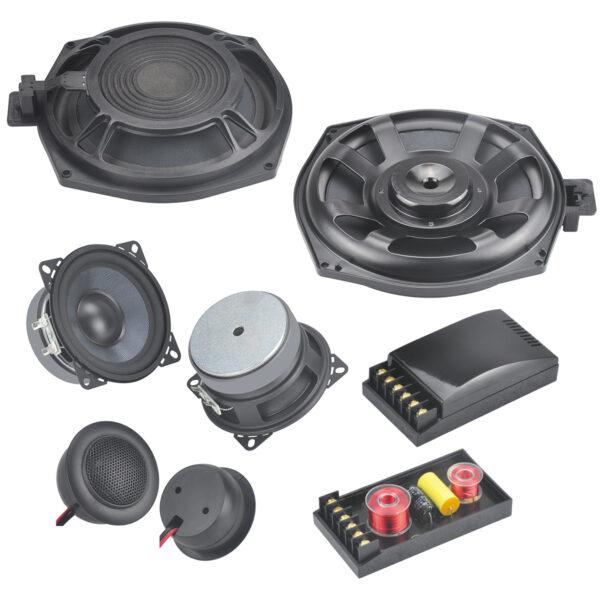

300W 3-Way Component Speakers | Audio Yong CMP8S Set

Description

General Data					Unit
Type		Woofer	Midrange	Tweeter
Overall Dimensions		207*54	102*58	60*34	mm
Nominal Power Handling		200	50	30	W
Transient Power 10ms		400	100	60	W
Sensitivity		86	88		dB
Frequency Response		46-1.5k	97-20K		Hz
Cone Material		Paper	Fiber Cone	Silk
Net Weight		1.3	0.7	0.1	kg
Electrical Data
Nominal Impedance		4	4	4	Ohm
DC Resistance		3.2	3.2	3.6	Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter		50.8	25.9	25.4	mm
Voice Coil Height		17	8.2	1.4	mm
HE Magnetic Gap Height		8	4	2	mm
Max.Linear Excursion		4.5	2.1		mm
Voice Coil bobbin		Kapton	Kapton	Kapton
Voice Coil Wire		Copper	Copper	CCAW
Number Of Layers		4	2	2	layers
Magnet System Type		Neodymium	High Flux Ferrite	Neodymium
BL Product		10.89	4.25		N.A
T-S Parameters
Suspension Compliance	Cms	0.17	0.41
Mechanical Q Factor	Qms	5.52	5.62
Electrical Q Factor	Qes	0.52	0.69
Total Q Factor	Qts	0.48	0.62
Moving Mass	Mms	66.34	6.47
Eq.Cas Air Load( liters)	VAS	14.36	1.88		Liter
Resonant Frequency	Fs	46	97	2K	Hz
Effective Piston Area	SD	240.5	56.7		cm²

Applications:

Car Audio Systems: Perfect for automotive audio systems requiring high output and clarity.
Pro Audio Systems: Can be used in various PA systems, especially for those needing a compact yet powerful speaker solution.
Home Audio: Ideal for high-end home audio setups where exceptional clarity and low distortion are needed.

Superior Build Quality:

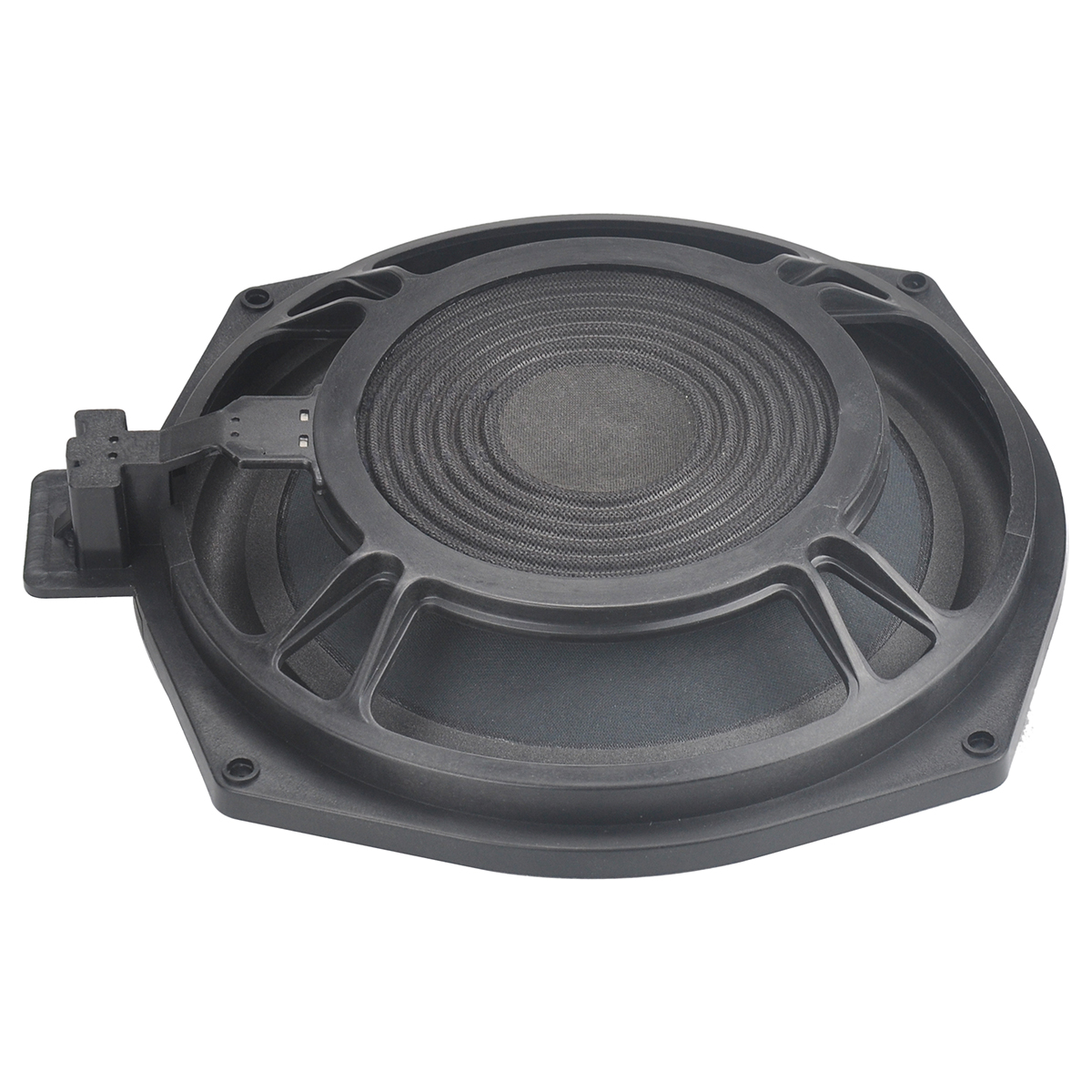

Woofer Construction:
- Voice Coil: 3-inch copper voice coil wound on a Kapton bobbin for durability and heat resistance.
- Magnet: 10.89 N.A Neodymium magnet for stable and dynamic bass performance.

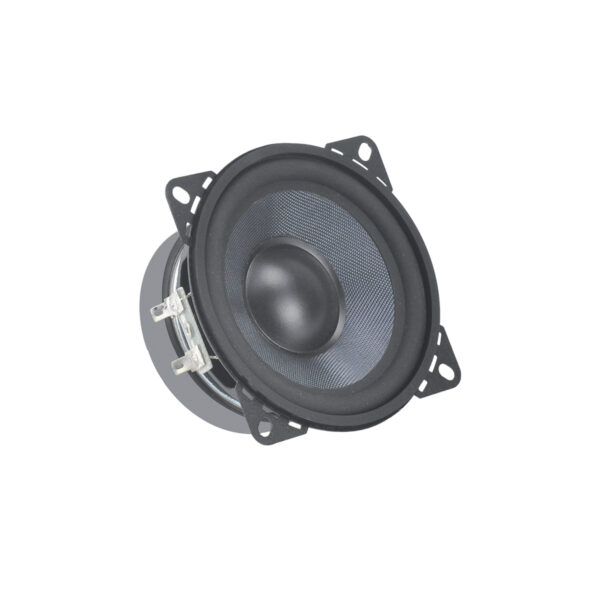

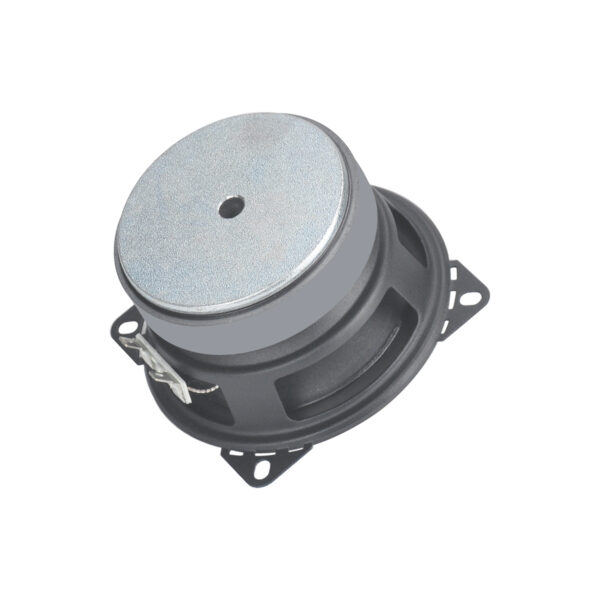

Midrange Construction:
- Voice Coil: 25.9mm copper coil with a Kapton bobbin, ensuring accurate mid-frequency reproduction.
- Magnet: High Flux Ferrite magnet for stable performance.

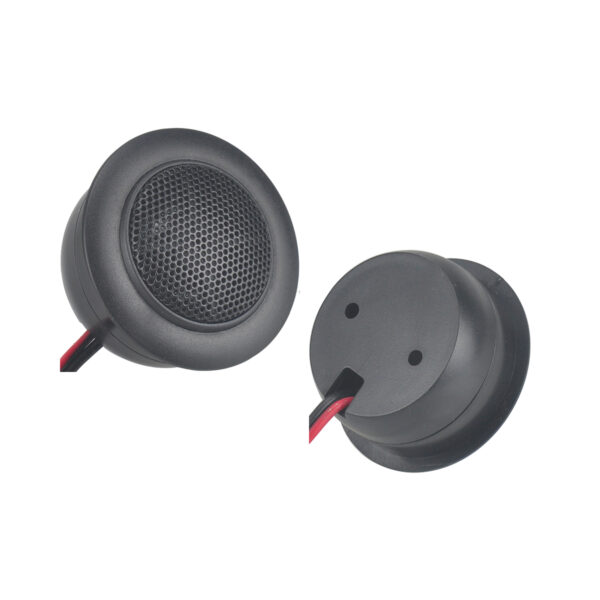

Tweeter Construction:
- Dome Material: Silk dome tweeter for clear, distortion-free treble.
- Voice Coil: 25.4mm CCAW coil with an aluminum bobbin for lightweight, high-performance output.
- Magnet: Neodymium magnet, providing precision and efficiency.

Advanced Engineering:

Max Linear Excursion (Xmax):
- Woofer: 4.5mm for distortion-free bass.
- Midrange: 2.1mm for smooth mid frequencies.
T-S Parameters:
- Woofer Qts: 0.48 for optimized bass response.
- Midrange Qts: 0.62 for detailed mid frequencies.
- Woofer Resonant Frequency (Fs): 46Hz for impactful bass.
- Tweeter Resonant Frequency (Fs): 2kHz for clean high frequencies.

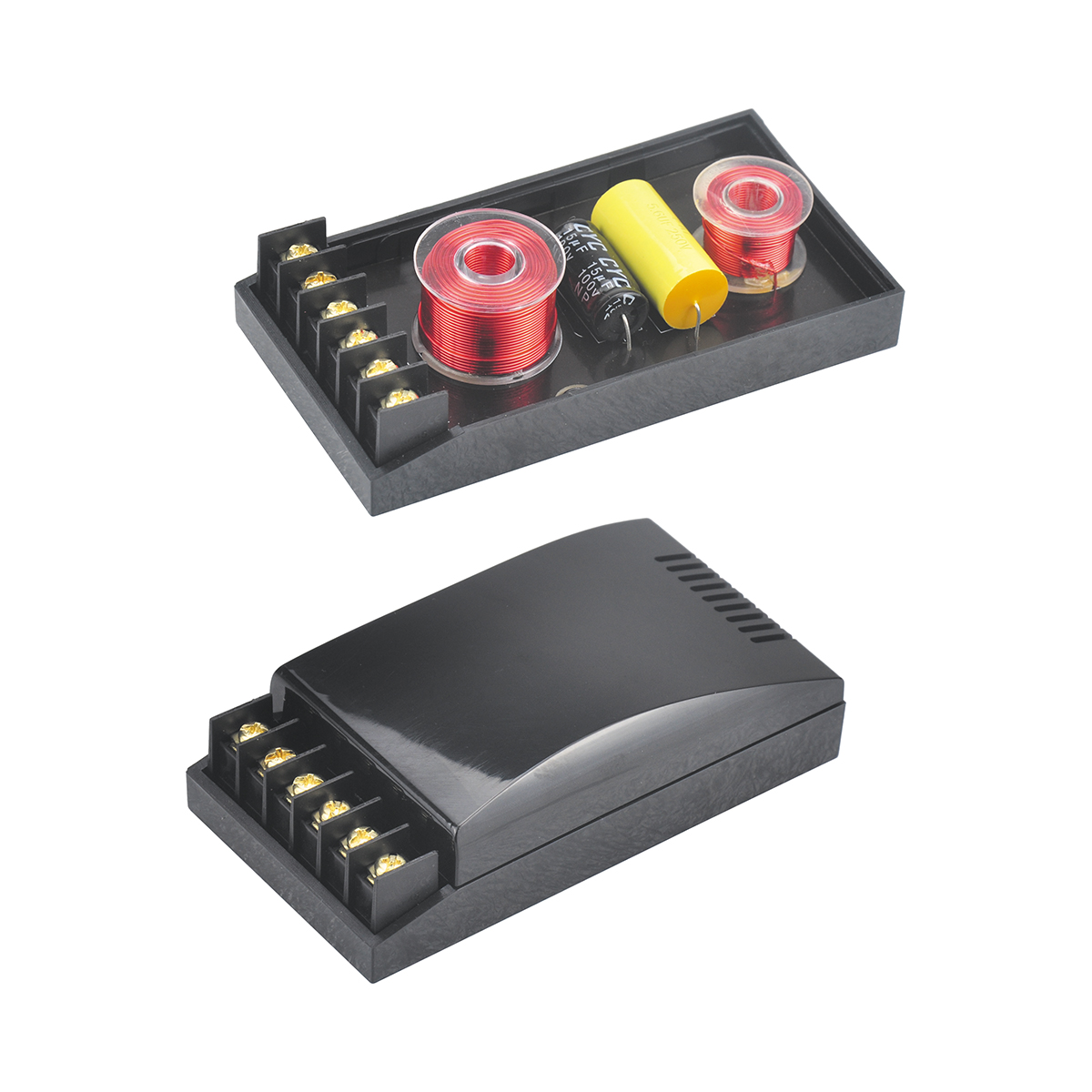

Crossover Design: Precision crossover ensures seamless transitions between woofer, midrange, and tweeter.

Why Choose the Audio Yong CMP8S 300W Max Power 3-Way Components Speaker?

Superior Sound Quality: Experience full-range sound, with deep bass, midrange clarity, and high-frequency crispness.
Durability and Reliability: Built with high-quality materials for long-lasting performance, even in demanding environments.
Versatility: Suitable for a wide range of applications from car audio to PA and home audio systems.
B2B and Customization Options: As a trusted speaker manufacturer, Audio Yong offers wholesale options, OEM services, and custom solutions tailored to your unique requirements.

B2B Wholesale Purchase Information:

Bulk Orders: We offer competitive pricing for bulk purchases and long-term business partnerships.
Customization: OEM and ODM services are available to match your specific needs, from speaker design to branding.
Global Shipping: We support fast and reliable shipping to major markets, including the USA, Europe, and Asia.

Key Applications:

Automotive Audio Systems
Professional Audio Systems
Home Audio Systems
Commercial Audio Applications

B2B Purchasing Process

Step 1: Contact Us

Reach out to us via our website, email, or phone to share your purchasing requirements, including product types, quantities, and any branding or customization needs.

We are a company specializing in wholesale business and do not accept retail orders. Our minimum order quantities are as follows:

Subwoofers: Minimum order quantity of 250 units
Car speakers: Minimum order quantity of 300 pairs
Car amplifiers: Minimum order quantity of 500 units

Pricing is determined based on the order quantity and will be quoted by our customer service team. Since our primary clients are businesses with their own brand or those looking to establish their brand, prices are not displayed directly on the website. Thank you for your understanding!

Step 2: Discussion and Confirmation

Our sales team will get in touch with you promptly to understand your specific needs and provide an initial quotation. If customization is required, we can offer professional advice, including product design and technical support.

Step 3: Order Confirmation

Once the order details are finalized, we will issue a formal contract and invoice, specifying all order details, including pricing, delivery time, and logistics arrangements.

Step 4: Payment and Production

After receiving the required deposit as per the contract, we will proceed with production. The production timeline depends on the order quantity and product type and will be clearly stated in the contract.

Step 5: Delivery and After-Sales Support

Once production is complete, we will ship the products using the logistics method specified by the client and provide necessary after-sales support.
