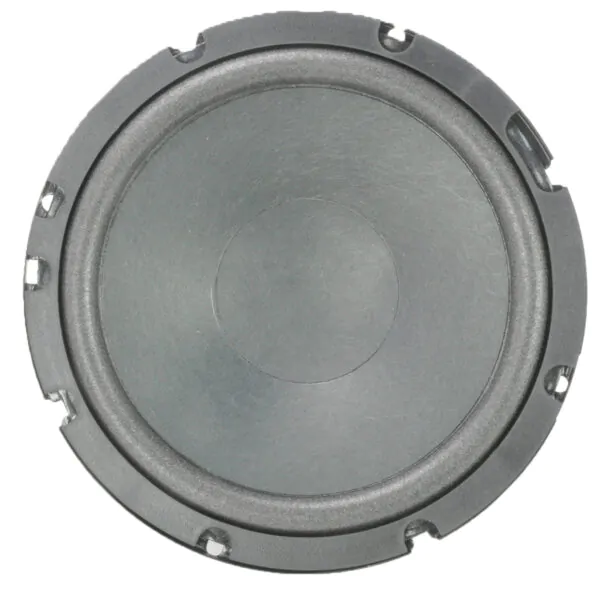

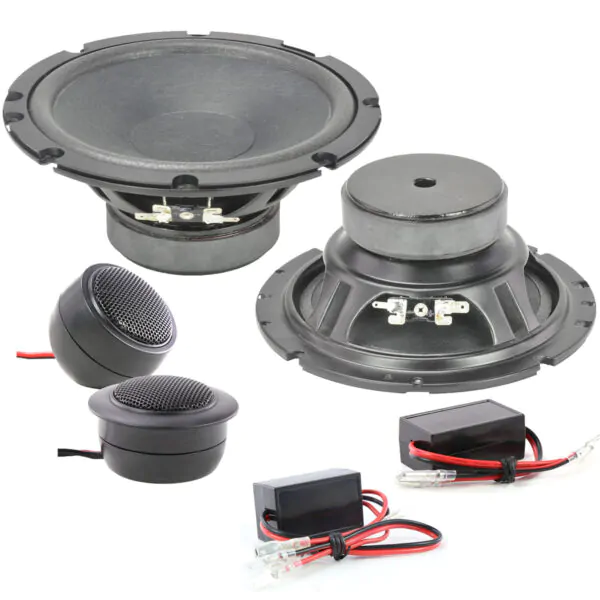

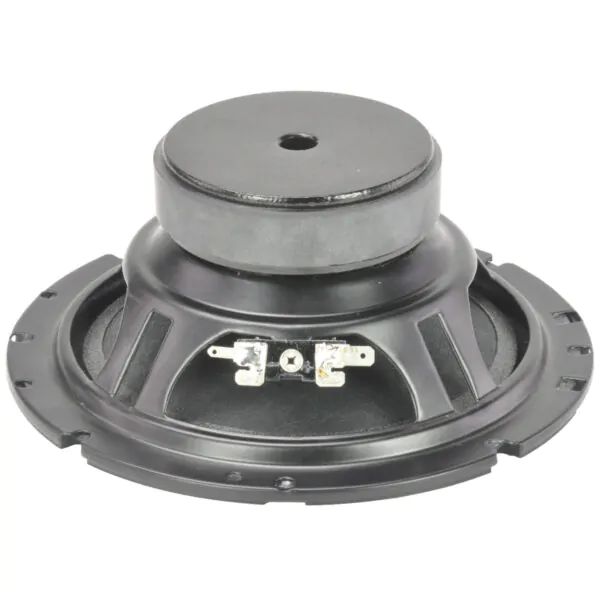

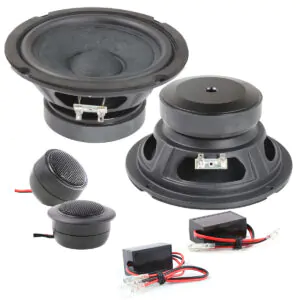

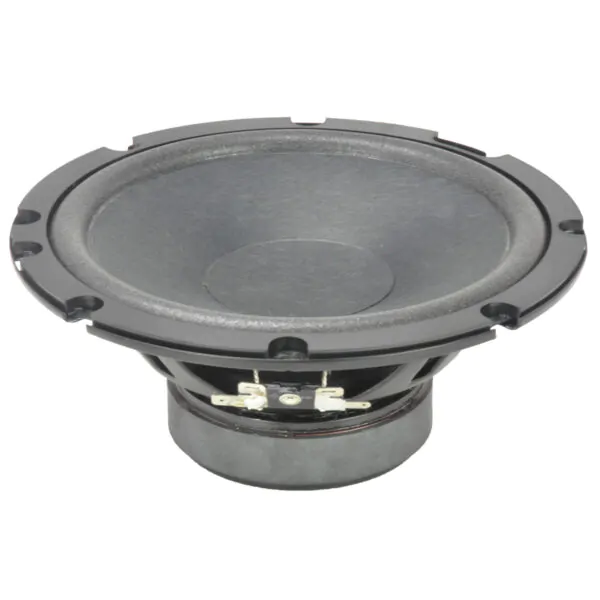

120W 2-Way Component Speakers | Audio Yong CMPE65G1

Description

Type		Woofer	Tweeter
Overall Dimensions	mm	166*68	60*35
RMS POWER	W	60
MAX POWER	W	120
Sensitivity	dB	88.4
Frequency Response	Hz	68-20K
Voice Coil Diameter	mm	25.9	25.4
Nominal Impedance	ohms	4	4
DC Resistance	ohms	3.2	3.6
Magnet（OZ）	Ferrite		Neodymium
Basket material	Stamped Steel Basket		ABS
Coil Material	Copper		Ccaw
Former material	Kapton		Kapton
Cone Material	Paper		Silk
Surround material	Rubber		Silk
Voice coil winding height	mm	9.5	1.6
Gap height	mm	4	2
Xmax	mm	2.75
BL Product	N.A	3.79
Net weight	kg	0.78
Fs	Hz	68	2K
Mms	g	10.5
Cms	mm/N	0.5
Qms		7.15
Qes		1.01
Qts		0.88
Vas	L	13.9
Sd	㎡	138.9
No	%	0.43

Applications:

Car Audio System Upgrades: Perfect for replacing stock speakers with a high-performance component speaker, offering superior sound reproduction.
OEM Audio Solutions: Ideal for automotive manufacturers seeking quality speakers for their new vehicle models.
Custom Car Audio Builds: Perfect for custom installations where sound clarity, durability, and power handling are key requirements.
Aftermarket Audio Retail: A popular choice for audio retailers and distributors looking to offer reliable, high-quality speakers for their customers.
Home Audio Systems: Also suitable for small home audio applications, where high-quality sound and space-saving components are needed.

Technical Highlights:

100W Max Power with 60W RMS for reliable performance and clarity.
Wide Frequency Response (68Hz – 20kHz) for full-range sound reproduction.
Ferrite Magnet (Woofer) and Neodymium Magnet (Tweeter) for improved power efficiency and excellent sound performance.
Copper Coil and Kapton Voice Coil Bobbin for excellent heat resistance and long-lasting durability.
4-Ohm Impedance ensures compatibility with most car amplifiers.
Rubber Surround for enhanced durability and better sound performance over time.
Adjustable Tweeter Level for fine-tuning the high frequencies (+2dB/0dB/-2dB).

Why Choose the CMPE65G1?

The CMPE65G1 offers a perfect combination of power, clarity, and versatility. Its 100W max power and 60W RMS handling allow it to deliver powerful and distortion-free sound, while its wide frequency response ensures detailed bass and crisp treble. The use of neodymium tweeters and ferrite woofers allows for high-efficiency audio performance with minimal distortion. Whether you’re upgrading your vehicle’s factory sound system, designing a custom audio setup, or manufacturing audio systems for OEMs, the CMPE65G1 provides a reliable, high-performance solution.

B2B Purchase Information:

Minimum Order Quantity (MOQ): Custom orders and bulk purchases are available for OEM manufacturers and audio distributors. Please contact us for specific MOQ details.
Competitive Pricing: Bulk pricing and custom quotes available based on order volume. Please get in touch with our sales team for more information.
Flexible Shipping Options: Global shipping solutions to meet the needs of our B2B clients.
OEM & Custom Branding: Private labeling and branding options available for larger orders.
Payment Options: Secure payment methods such as bank transfer and PayPal accepted for business orders.

B2B Purchasing Process

Step 1: Contact Us

Reach out to us via our website, email, or phone to share your purchasing requirements, including product types, quantities, and any branding or customization needs.

We are a company specializing in wholesale business and do not accept retail orders. Our minimum order quantities are as follows:

Subwoofers: Minimum order quantity of 250 units
Car speakers: Minimum order quantity of 300 pairs
Car amplifiers: Minimum order quantity of 500 units

Pricing is determined based on the order quantity and will be quoted by our customer service team. Since our primary clients are businesses with their own brand or those looking to establish their brand, prices are not displayed directly on the website. Thank you for your understanding!

Step 2: Discussion and Confirmation

Our sales team will get in touch with you promptly to understand your specific needs and provide an initial quotation. If customization is required, we can offer professional advice, including product design and technical support.

Step 3: Order Confirmation

Once the order details are finalized, we will issue a formal contract and invoice, specifying all order details, including pricing, delivery time, and logistics arrangements.

Step 4: Payment and Production

After receiving the required deposit as per the contract, we will proceed with production. The production timeline depends on the order quantity and product type and will be clearly stated in the contract.

Step 5: Delivery and After-Sales Support

Once production is complete, we will ship the products using the logistics method specified by the client and provide necessary after-sales support.
