| Type | Subwoofer |
| Overall Dimensions (mm) | 840*500 |
| RMS Power (W) | 7000 |
| MAX Power (W) | 14000 |
| Sensitivity (dB) | 96.5 |
| Frequency Response (Hz) | 20-300 |
| Voice coil diameter (mm) | 152 |
| Nominal Impedance (ohms) | Dual 2 |
| DC Resistance (ohms) | Dual 1.4 |
| Magnet size & material | φ68*φ31*30hmm Neodymium |
| Basket material | Die-Cast Aluminum Basket |
| Coil material | Flat Aluminum |
| Former material | Black Aluminium |
| Cone material | Paper |
| Surround material | Foam |
| Voice coil winding height (mm) | 80 |
| Gap height (mm) | 40 |
| Xmax (mm) | 20 |
| BL Product (N.A) | 70.22 |
| Net weight (kg) | 118 |
| Fs | 20Hz |
| Mms | 2393.8g |
| Cms | 0.027mm/N |
| Qms | 7.749 |
| Qes | 0.172 |
| Qts | 0.168 |
| VAS | 633.74 l |
| SD | 4071.5cm² |
| No | 2.75% |
Hot

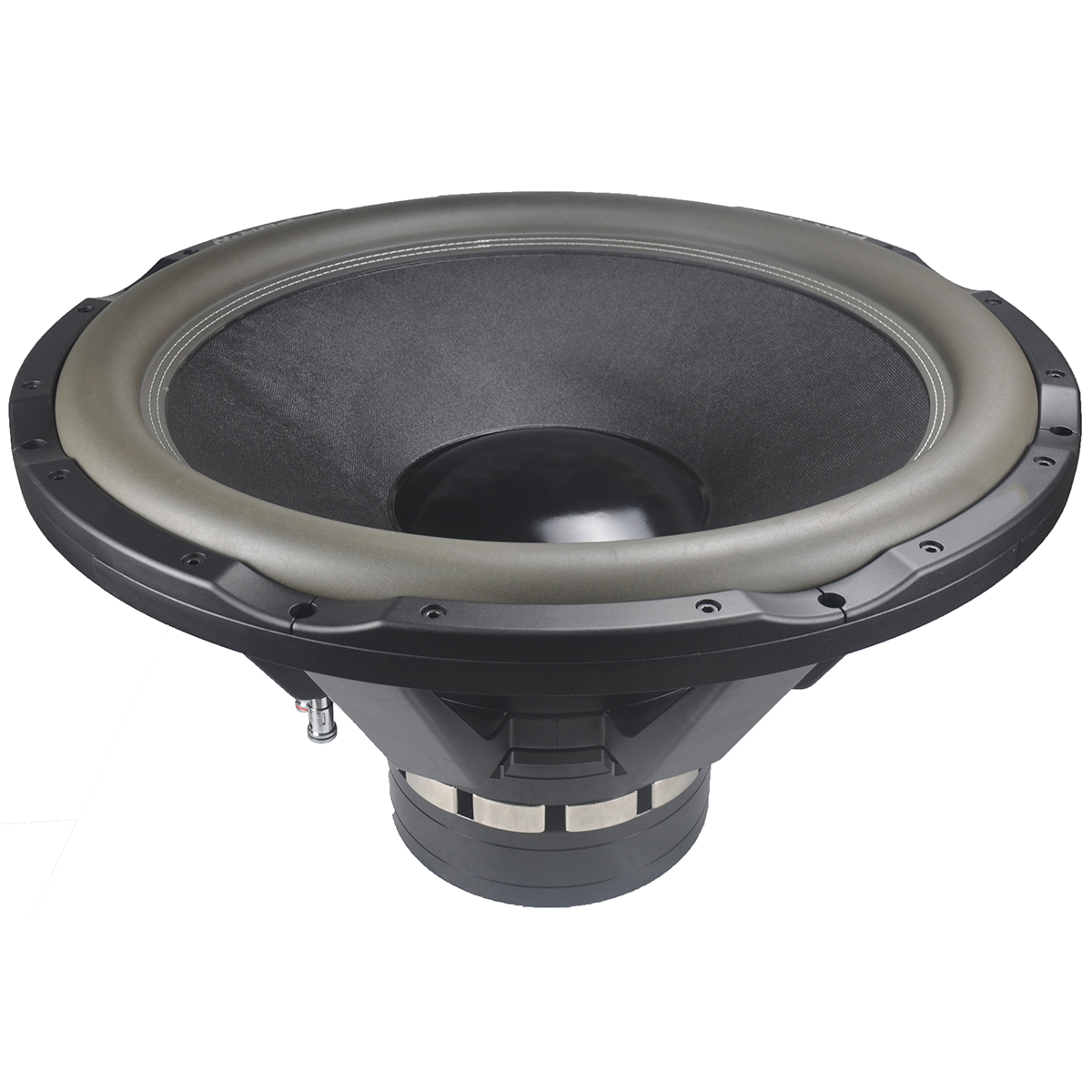

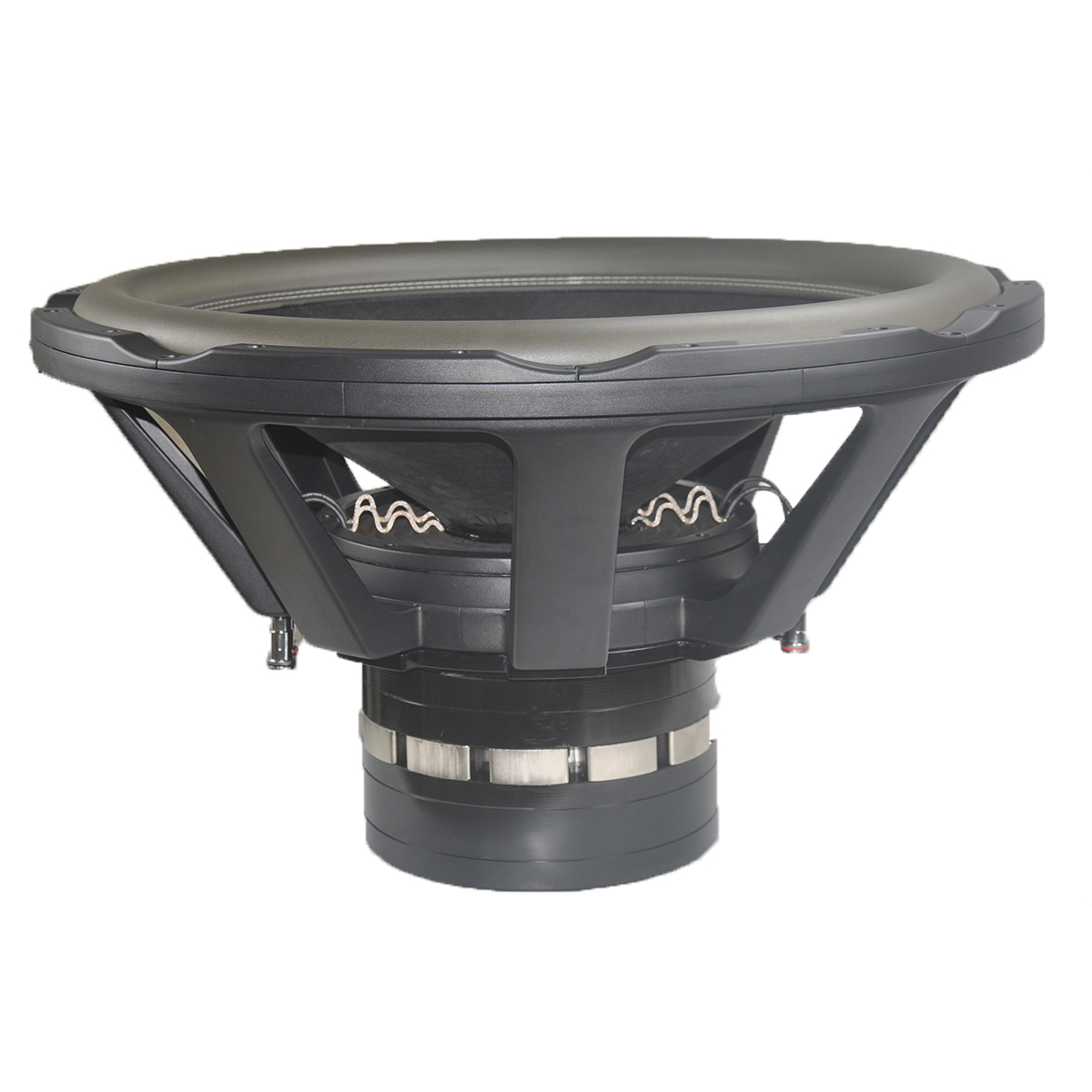

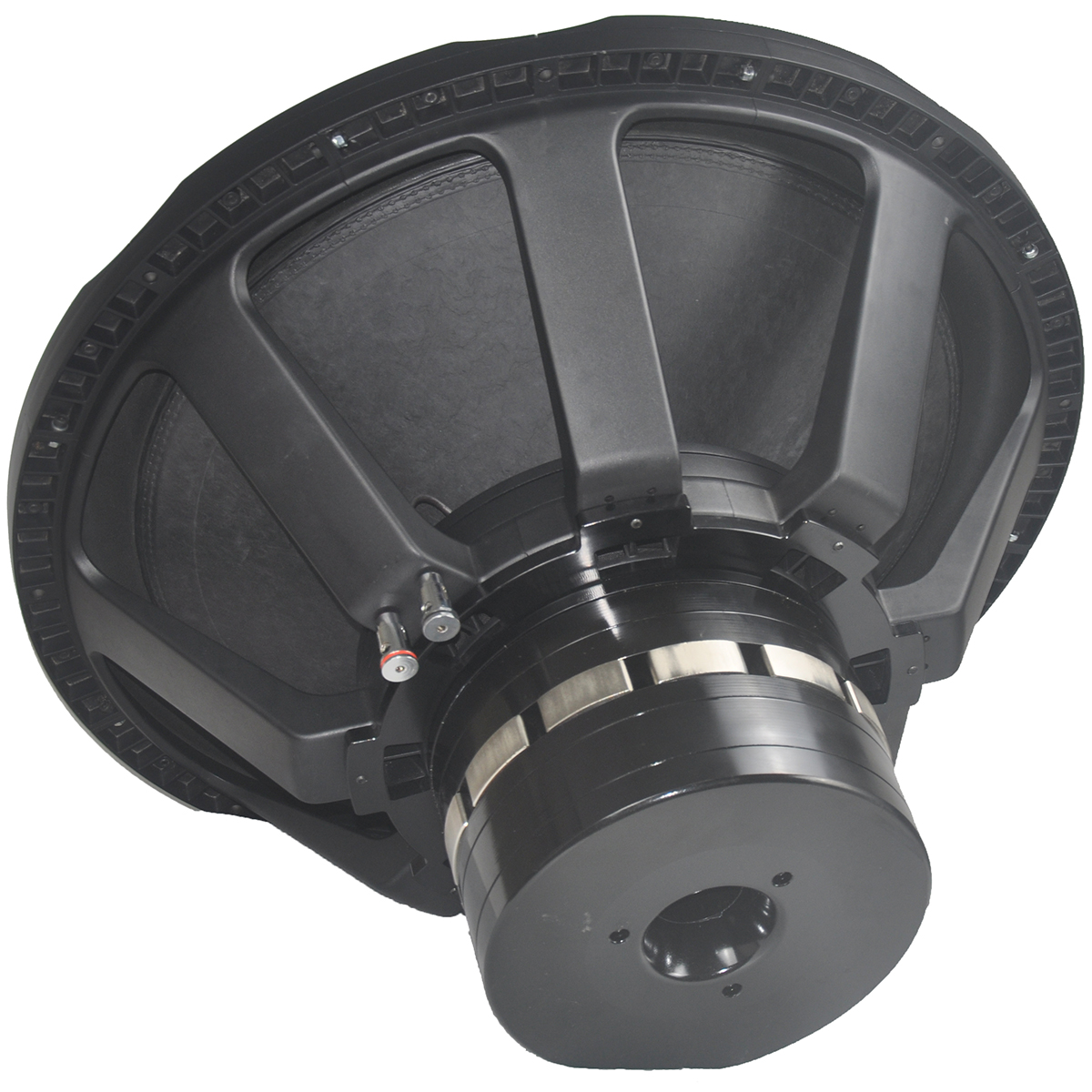

Model M | 32-Inch Super Die-Cast Aluminum Basket Car Subwoofer – 7000W RMS, 14000W Max Power, Dual 2 Ohm Neodymium Bass Monster
Unleash the ultimate bass experience with the Model M(CW3202N) — a true 32-inch powerhouse engineered for those who demand extreme performance.
Built with a super die-cast aluminum basket and a massive 152mm (6-inch) voice coil, this subwoofer delivers unmatched durability, precision, and power handling.
With a RMS power of 7000W and a peak output of 14000W, the Model M produces earth-shaking low frequencies with clean, controlled response from 20Hz to 300Hz.
Its dual 2-ohm configuration and high-efficiency neodymium magnet system (φ68×φ31×30mm) ensure superior sensitivity (96.5dB) and maximum energy transfer, making it perfect for competition-level SPL builds and ultra-high-end installations.
Every component is designed for performance — from the flat aluminum coil and black aluminum former to the paper cone with foam surround, optimized for both strength and responsiveness.
Weighing 118kg, the Model M is not just a subwoofer — it’s a statement of engineering mastery.
Key Features:
32-inch heavy-duty design with 840×500mm frame size
7000W RMS / 14000W MAX Power Output
Die-cast aluminum basket for superior rigidity
Dual 2-ohm impedance with dual 1.4Ω DCR
152mm voice coil, 80mm winding height, 20mm Xmax
Neodymium magnet for ultra-strong magnetic force
Fs: 20Hz | Qts: 0.168 | VAS: 633.74L | Mms: 2393.8g
Paper cone + foam surround for natural, deep bass
Built for professional SPL, show cars, and extreme bass lovers
Model M — Power. Precision. Presence.
