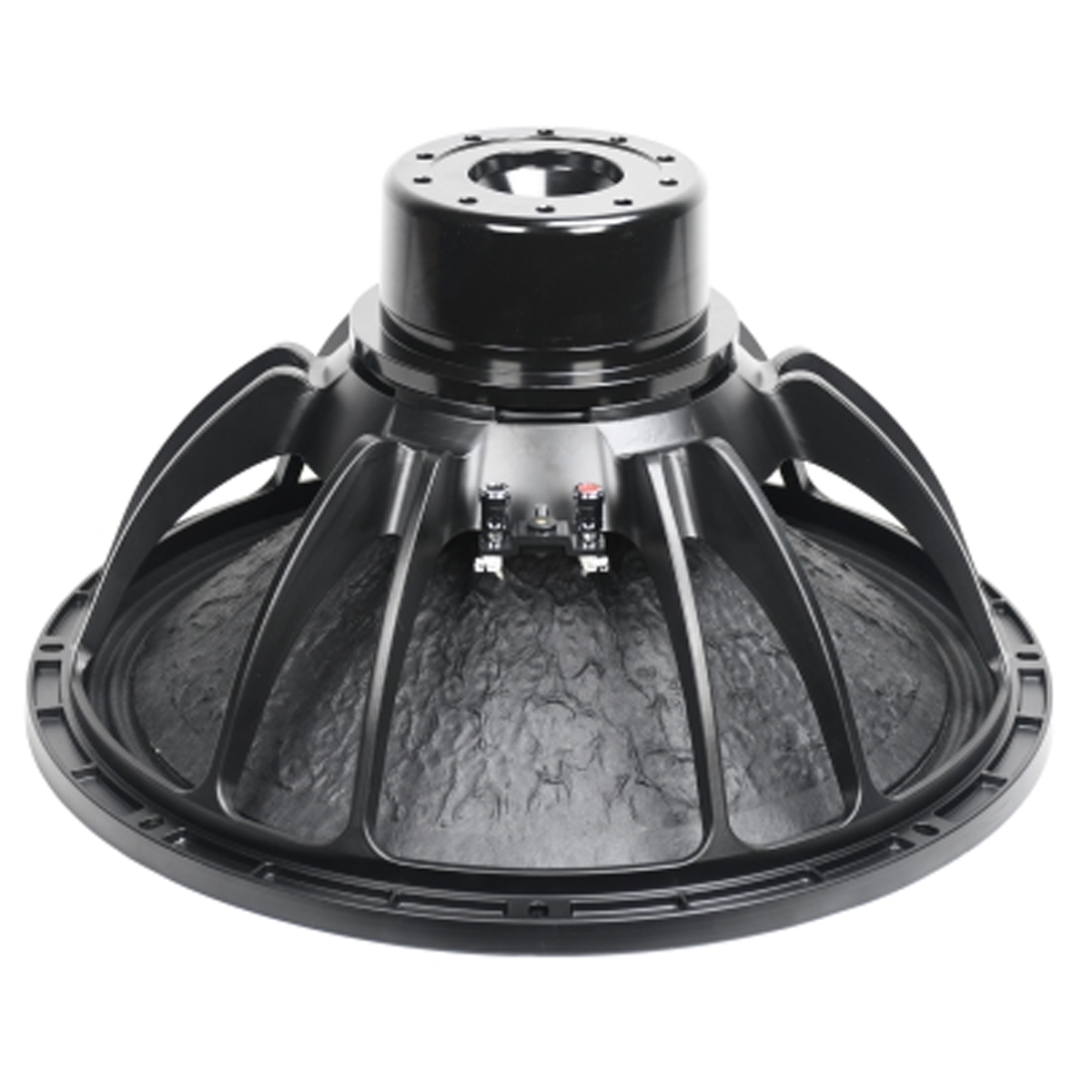

PW15N | 15" Pro Subwoofer - 1,500W Neo Pro Audio for B2B

Description

GENERAL SPECIFICATIONS
Nominal diameter	mm (in.)	380(15)
Nominal impedance	Ω	8
Minimum impedance	Ω	6.4
Program power (1)	W	2000
AES Power rating (2)	W	1000
Sensitivity (3)	dB	95
Frequency range	Hz	40-2100
Voice coil diameter	mm (in.)	99.8（4）
Chassis material	Die-Cast Aluminum Basket
Magnet material	Neodymium
Magnet dimensions ODxIDxH	(in.) mm	98.72012 3.880.780.47
Coil material	Copper(I/O)
Former material	Glass Fiber
Cone material	Water Proof Treated Paper
Surround material	Polycotton
Xmax (4)	mm (in.)	12.25 (0.482)
Gap height	mm (in.)	15 (0.59)
Voice coil winding height	mm (in.)	32 (1.259)
Driver displacement volume	(ft³)	0.379
SMALL SIGNAL PARAMETERS
DC resistance	Re	0hm	5.20
Resonance frequency	Fs	Hz	43
Moving mass	Mms	g	186.5
Compliance	Cms	mm/N	0.07
Force factor	BxL	N/A	24.8
Mechanical Q-factor	Qms		8.26
Electrical Q-factor	Qes		0.39
Total Q-factor	Qts		0.37
Equivalent air volume	Vas	l (ft³)	135.6(4.78)
Voice coil Inductance	Le	mH	1.15
Diaphragm area	Sd	cm² (in²)	855.3(132.5)
Reference efficiency	Eta 0	%	2.2

Applications

Premium Vehicle Upgrades: Ideal for luxury car audio installs where lightweight design meets deep, resonant bass.
Mobile Sound Competitions: Dominate SPL events with a pro sound subwoofer engineered for high power and precision.
Commercial Audio Projects: Perfect for outfitting fleets or service vehicles with robust, space-efficient sound systems.

Key Features

Power & Precision: Delivers 1,500W AES power (1,000W RMS, 2,000W program) with a 4” copper voice coil and 8-ohm impedance, ensuring compatibility with a wide range of amplifiers.
Wide Frequency Range: Covers 40Hz-2,100Hz, with a 95dB sensitivity and 12.25mm Xmax for dynamic, room-filling lows.
Neodymium Innovation: Features a lightweight neodymium magnet (98.7x20x12mm) and die-cast aluminum basket, reducing weight while boosting output—perfect for tight installs.
Robust Construction: Built with a water-proof treated paper cone and polycotton surround, paired with a 32mm voice coil winding height for durability under heavy use.

Why Choose This Pro Subwoofer?

Unmatched Efficiency: The neodymium design slashes weight without compromising power, offering a 0.37 total Q-factor and 135.6L Vas for optimized performance in any setup.
Versatile Performance: With a resonance frequency of 43Hz and a force factor of 24.8 N/A, this pro subwoofer adapts to various enclosures, giving your clients flexibility.
Bulk-Ready for B2B: Available with a minimum order quantity (contact us for details), ideal for large-scale projects, ensuring cost-effective supply for distributors and installers.

Added Value

Eco-Smart Design: The lightweight build reduces vehicle strain, appealing to green-minded clients while maintaining top-tier sound quality.

B2B Purchasing Process

Step 1: Contact Us

Reach out to us via our website, email, or phone to share your purchasing requirements, including product types, quantities, and any branding or customization needs.

We are a company specializing in wholesale business and do not accept retail orders. Our minimum order quantities are as follows:

Subwoofers: Minimum order quantity of 250 units
Car speakers: Minimum order quantity of 300 pairs
Car amplifiers: Minimum order quantity of 500 units

Pricing is determined based on the order quantity and will be quoted by our customer service team. Since our primary clients are businesses with their own brand or those looking to establish their brand, prices are not displayed directly on the website. Thank you for your understanding!

Step 2: Discussion and Confirmation

Our sales team will get in touch with you promptly to understand your specific needs and provide an initial quotation. If customization is required, we can offer professional advice, including product design and technical support.

Step 3: Order Confirmation

Once the order details are finalized, we will issue a formal contract and invoice, specifying all order details, including pricing, delivery time, and logistics arrangements.

Step 4: Payment and Production

After receiving the required deposit as per the contract, we will proceed with production. The production timeline depends on the order quantity and product type and will be clearly stated in the contract.

Step 5: Delivery and After-Sales Support

Once production is complete, we will ship the products using the logistics method specified by the client and provide necessary after-sales support.
